Z13 Keyless Locking Assembly – High Torque Steel Expansion Sleeve

Z13 Keyless Locking Assembly – High Torque Steel Expansion Sleeve

Already In Wishlist Add to Wishlist
Add to Wishlist
Description

Description

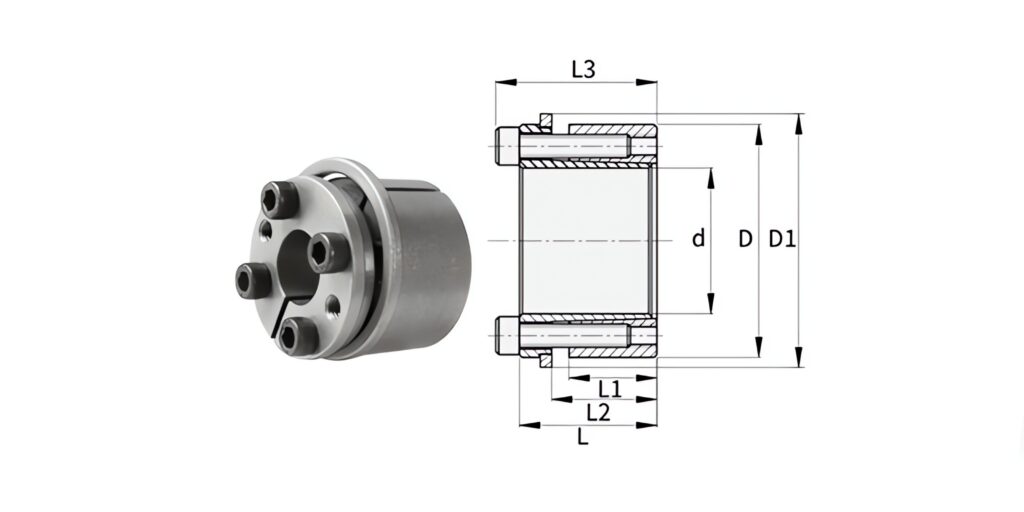

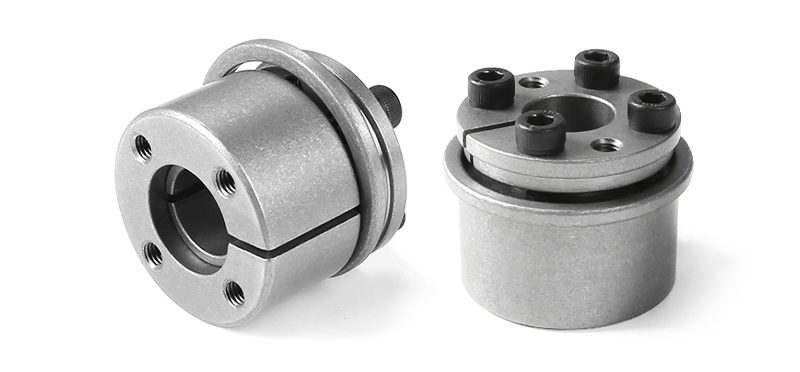

Z13 Expansion Sleeve

Z13 Expansion Sleeve made for the most demanding mechanical transmission systems and delivers unmatched reliability under extreme conditions.

Unlike standard locking assemblies, the Z13 is optimized for environments requiring high rotational speeds and heavy loads. Its robust design ensures a secure, zero-backlash friction fit that eliminates the wobbling and fretting often seen in keyed connections under dynamic stress.

  • EXCEPTIONAL TORQUE TRANSMISSION: Optimized structure ensures maximum surface contact pressure, providing superior torque handling capabilities for heavy-duty industrial drives.

  • HIGH SPEED STABILITY: The self-centering design ensures excellent concentricity, minimizing vibration and runout even at high rotational speeds.

  • RAPID INSTALLATION & REMOVAL: Designed for flexibility in complex operating conditions. The assembly can be locked or released quickly using standard tools, making maintenance hassle-free.

  • EXTENDED EQUIPMENT LIFE: The friction-based connection prevents mechanical wear and “notch effect” damage to the shaft and hub, ensuring long-term reliability.

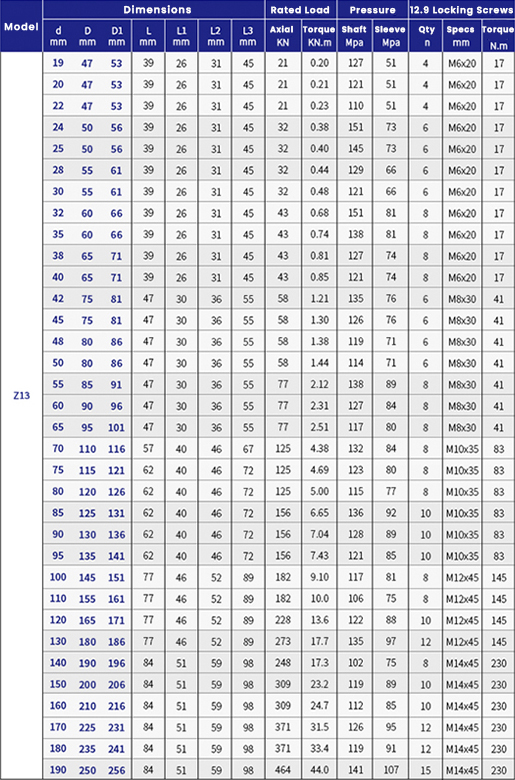

Sizes

Additional information

Expansion sleeve model

Z13

Self-Centering

Yes

Material

45# Steel / Alloy Steel

Structure

Heavy Duty Taper Lock

Shaft Tolerance (Rec.)

h8

Hub Tolerance (Rec.)

H8

Surface Roughness

Ra ≤ 3.2 µm
