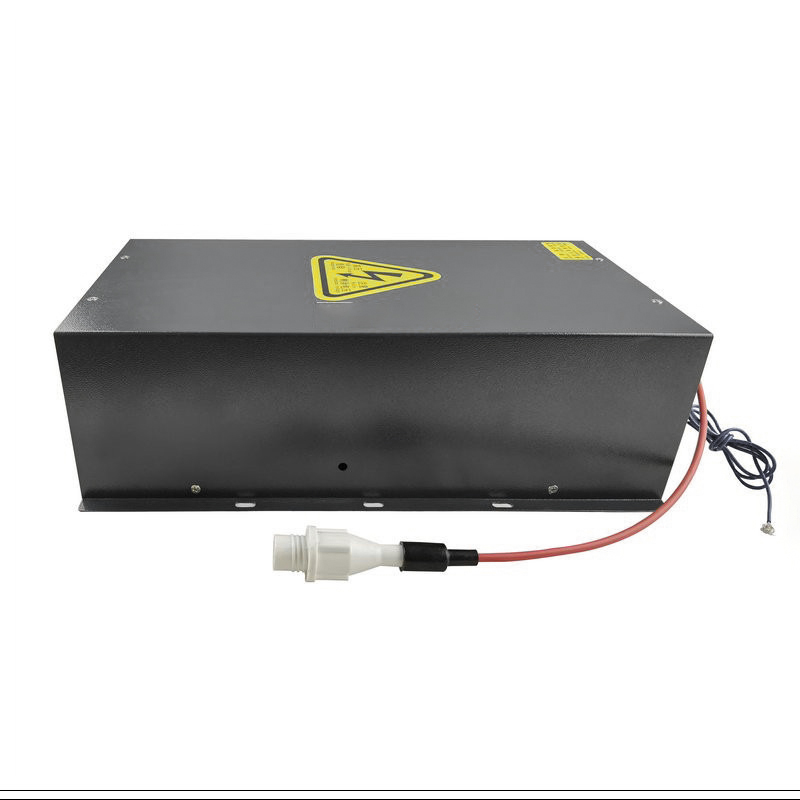

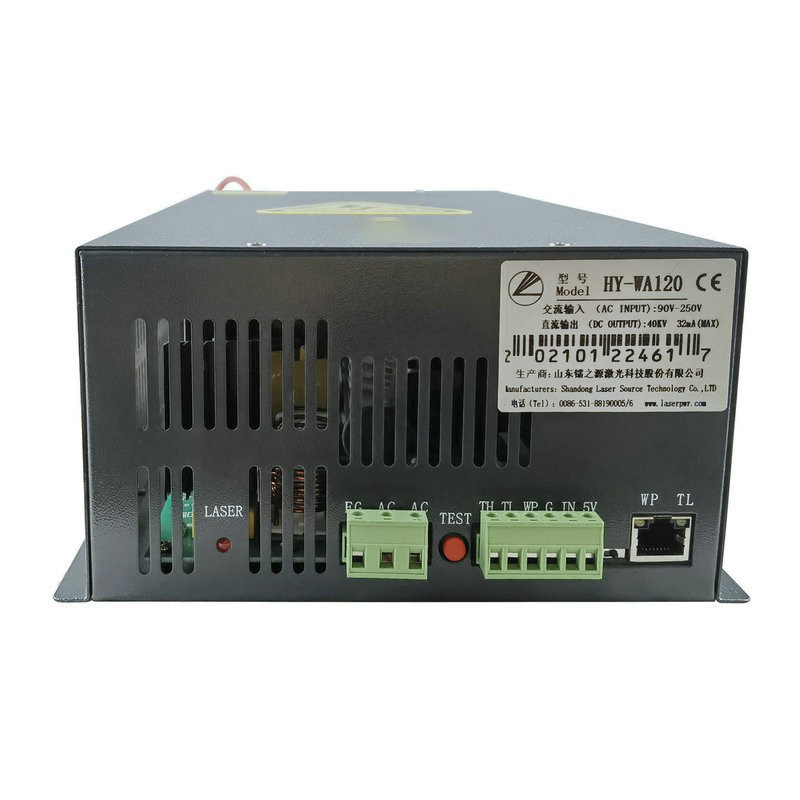

LASERPOWER HY-WA120 120W CO2 Laser Power Supply – Active PFC & Zero-Current Switching
$290,00
In Stock
Power your CO2 laser with precision and reliability of HY-WA Series Power Supply.
Made with Zero-Current Half-Bridge Soft-Switching technology, these power supplies deliver a fast response time and high efficiency, ensuring your laser tube fires instantly and consistently. They are fully compatible with all major laser tube brands and are ideal for cutting and engraving machines.

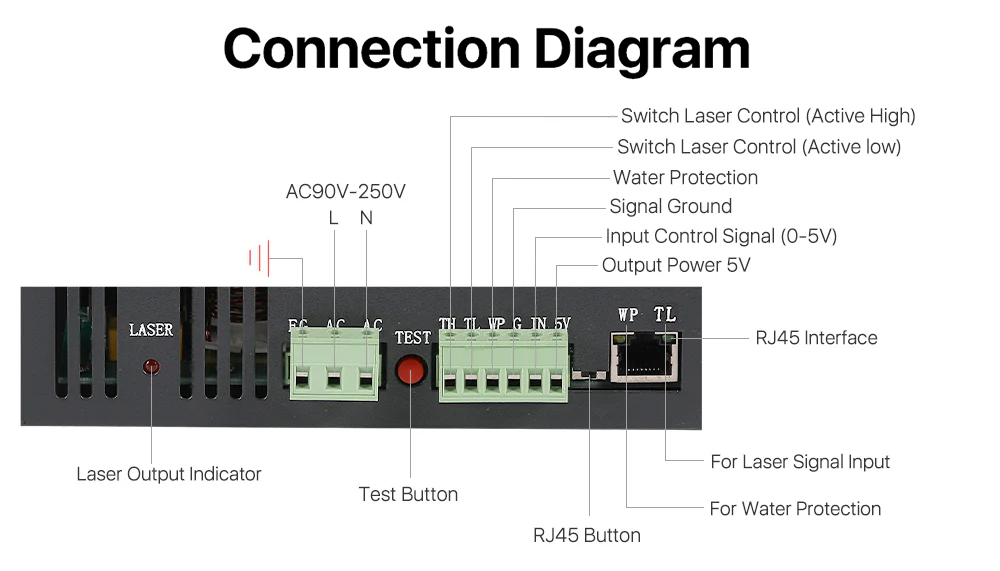

SIMPLE TERMINAL CONTROL: Standard terminal block layout allows for easy high/low-level control. Compatible with Ruida, Trocen, and most other DSP controllers.
OPEN CIRCUIT PROTECTION: Built-in protection logic automatically cuts power if the output circuit is open (e.g., if the laser tube is disconnected or broken), preventing damage to the power supply itself.
| Weight | 3,7 kg |
|---|---|
| Power Supply Type | HT-WA Series |
| Power | 120W |
| Input Voltage | AC90-250V |
| Matching Laser Tube Power | 100~120W |
| AC Frequency | 47—440Hz |
| Max Input Power | 650W |
| Max Input Current | 6A |
| Max Output Voltage | DC 45KV |
| Max Output Current | DC 32mA |
| Efficiency | ≥ 90% (at full load) |
| Mean Time Between Failures | ≥ 10000 Hours |
| Response Speed | 1mS |
| Working Temp | -10~40°C |
| Relative Humidity | ≤ 90% |
| Dimensions L x W x H (mm) | 328 x 193 x 97 |
| Weight | 3.7 Kg |
| Brand | LASERPOWER |
