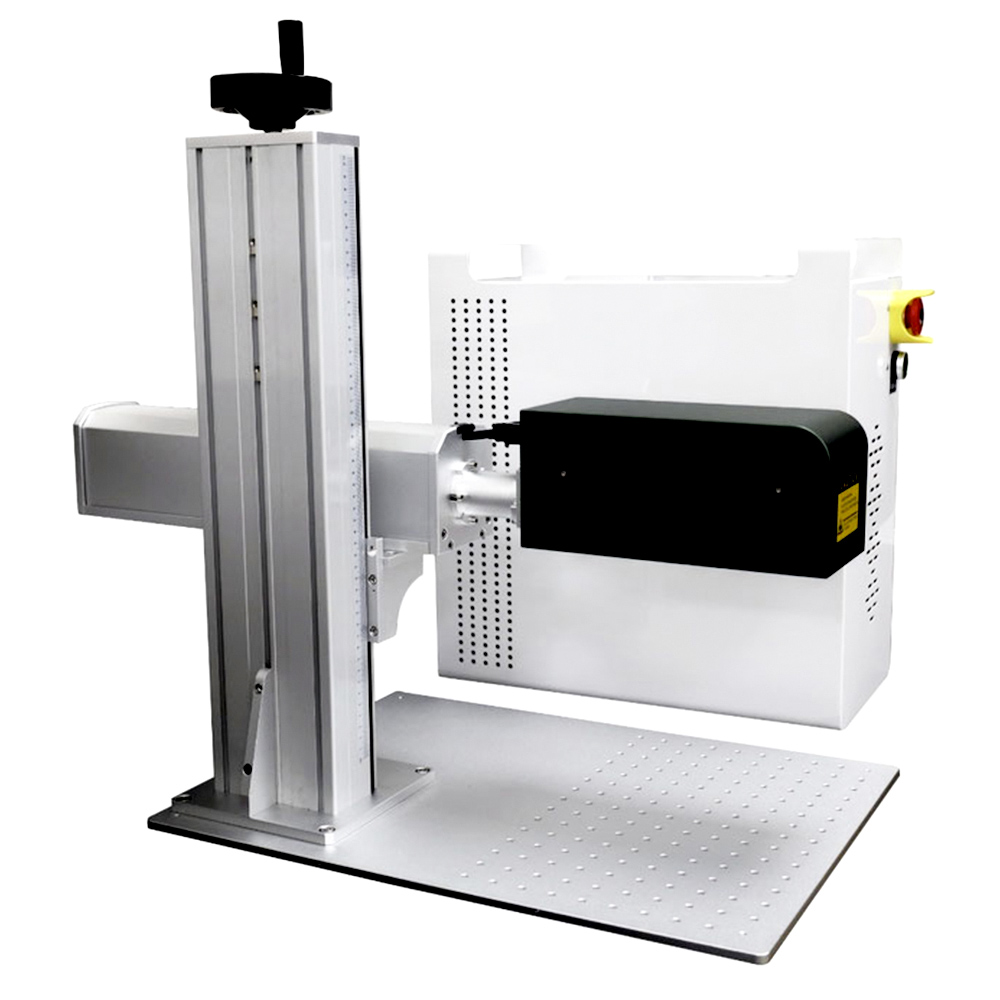

Industrial 3D Fiber Laser Marking Machine | 20W-60W Dynamic Focus
The 3D fiber laser marking machine is a cutting-edge industrial solution designed for precise marking on complex, curved, and uneven surfaces. Unlike standard 2D laser markers, which are strictly limited to flat focal planes, this system uses a modern dynamic focusing system. This technology automatically adjusts the focal length in real time along the Z-axis to ensure a constant laser spot size and uniform energy density on uneven surfaces.
VARIABLE POWER CONFIGURATIONS: Available in 20W, 30W, 50W, and 60W variants for specific material density and target cycle times.
DYNAMIC FOCUSING TECHNOLOGY: Utilizes a high-speed, motorized optical axis (Z-axis) that adjusts the focal length in real-time, allowing for continuous, distortion-free marking across complex 3D geometries.
CURVED AND IRREGULAR SURFACES: Capable of processing cylindrical, spherical, conical, and uneven surfaces without requiring rotary attachments or manual part repositioning, significantly streamlining the workflow.
SOLID-STATE FIBER LASER SOURCE: Built around a highly stable fiber optic source, the machine delivers a consistent beam profile with an expected operational lifespan of up to 100,000 hours.
The machine is composed of several key components that work together to generate and control the laser beam for precise marking. Each component is designed to ensure stable operation, accurate beam positioning, and reliable performance in industrial marking applications.

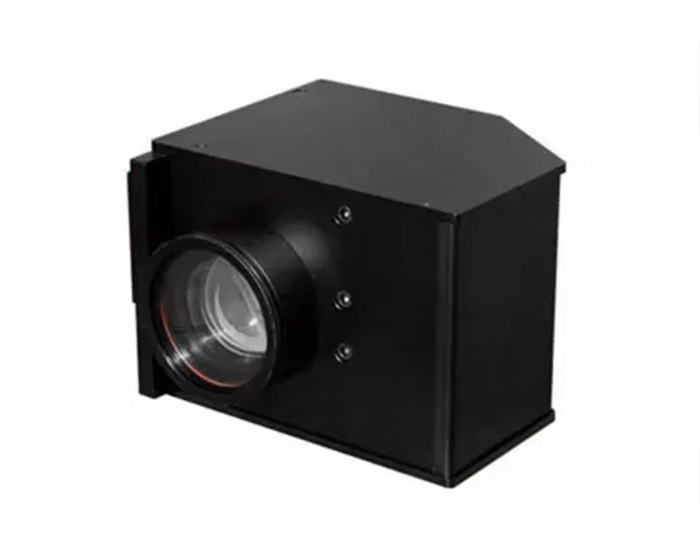

3D Galvo

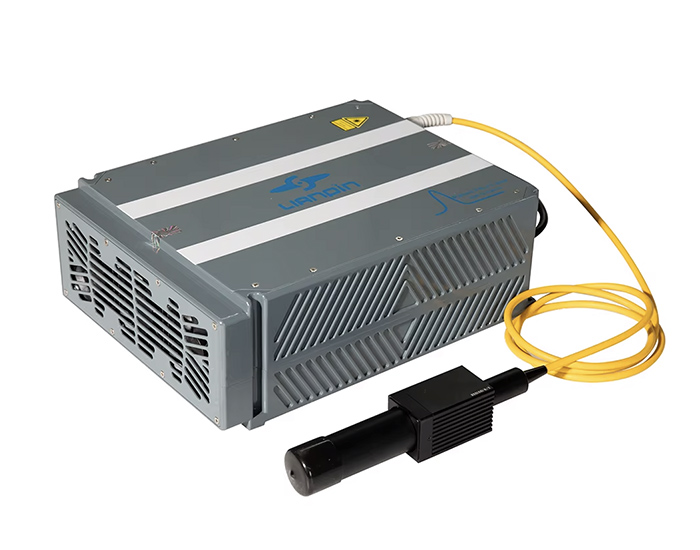

Laser Sourse

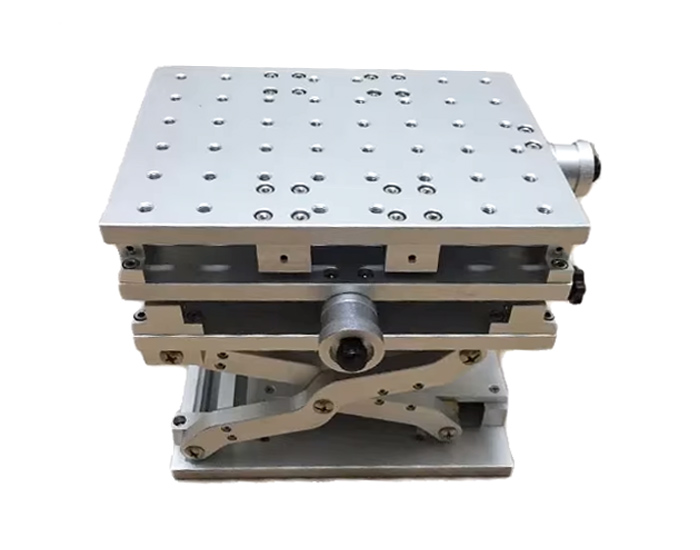

Working Table

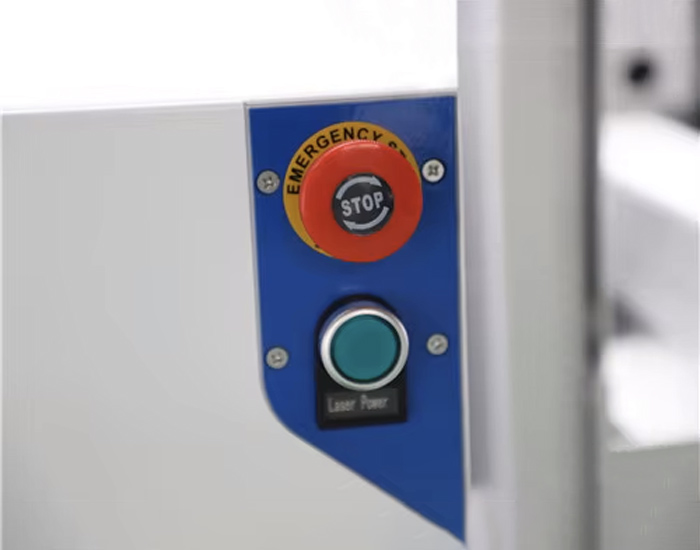

Control Panel
We offer a wide variety of laser types and options to fulfill your exact needs depending on the materials you are processing.
Here is a breakdown of the available laser types and their ideal material applications:
| Fiber Laser | All kinds of metal: Carbon Steel, Stainless Steel, Brass, Copper, Aluminum, Gold, Silver, kinds of Alloy, etc. Some hard Plastic. |
| CO2 Laser | All kinds of non-metal: Wood, Plywood, Bamboo, MDF, Leather, Fabric, Textile, Paper, Plastic, Acrylic, etc. |
| UV Laser | Metal and nonmetal for high accuracy marking. |
| MOPA Laser | Mark Color on Stainless Steel. |
| Green Laser | Make 3D Marking on Crystal. |
3D Engraving

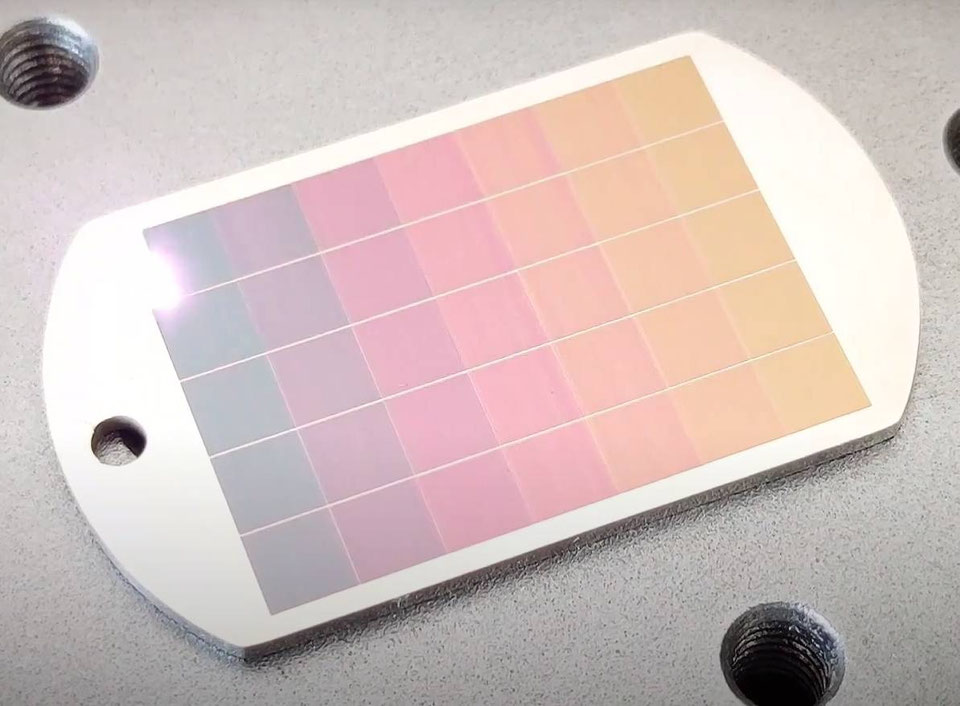

Color Marking
Because industrial laser requirements vary significantly by application, we do not use a standard “add to cart” checkout. We utilize a consultative ordering process to ensure you receive the exact machine configuration required for your facility.
Submit Your Requirements: Start by filling out our inquiry form. Detail your specific application needs, including target materials, desired laser power, preferred laser source and any optional accessories.
Technical Consultation & Quoting: Our engineering sales team will review your submission and contact you directly. We will discuss your production environment, finalize the optimal machine configuration, and provide a competitive, customized price quote.
Custom Assembly & Quality Assurance: Upon order confirmation and finalized terms, our technicians assemble your handheld laser marker to your exact specifications. Every unit undergoes rigorous operational testing to ensure peak performance and reliability.
Secure Shipping: Once testing is complete, the machine is securely crated for industrial transport and shipped globally to your facility, ready for immediate integration into your workflow.
This system is built for professional industrial users, fabrication shops, and manufacturing facilities. It is the ideal tool for:
Heavy Equipment Manufacturers: Marking VINs, serial numbers, and spec plates directly onto large chassis.
Metal Fabrication Shops: Adding logos, part numbers, and tracking codes to oversized structural steel or custom metalwork.
Mold and Die Makers: Deep carving identification codes into heavy tooling without removing it from the rack.
Aerospace and Automotive: Marking large, assembled components where disassembly is not an option.
Yes. The machine can be customized to meet specific production requirements. Depending on the application, configurations such as laser power, working area, marking software features, and optional accessories can be adjusted. Customization may also include different enclosure designs, rotary devices for marking cylindrical objects, or integration with production lines.
When sending an inquiry, it is recommended to describe the materials you plan to mark, the marking size, and your production environment so the appropriate configuration can be suggested.
| Power | 20W, 30W, 50W, 60W |
|---|---|
| Lifespan | up to 100,000 hours |
| Laser Sourse | JPT |
| Wavelength | 1064 nm |
| Laser Type | Fiber Laser, CO2 Laser, UV Laser, MOPA Laser, Green Laser |
| Engraving Speed | 10,000 mm/s |
| Operating Temperature | +15℃ ~ +35 ℃ |
| Working Voltage | 120V–220V |
| Supported 3D/2D Formats | STL, STEP, DXF, PLT, AI, BMP, etc. |
| Weight | 32Kg |
