Industrial Enclosed Fiber Laser Marking Machine | 20W-100W
The Enclosed Fiber Laser Marking Machine is engineered for precision and safety in industrial marking applications. Its fully enclosed design provides a controlled environment, ensuring operator safety by containing laser emissions and debris. Available in multiple laser power configurations, it offers flexibility to meet diverse production demands. This machine integrates advanced fiber laser technology within a protective cabinet, facilitating easy operation and reliable performance.
SCALABLE POWER OUTPUT: Available in 20W, 30W, 50W, 80W and 100W configurations. Select higher wattage models for applications requiring deeper carving depth and faster cycle times.
CONFIGURABLE LASER SOURCES: Choose from premium laser source brands including Raycus, MAX, and IPG to match your specific reliability and performance requirements.

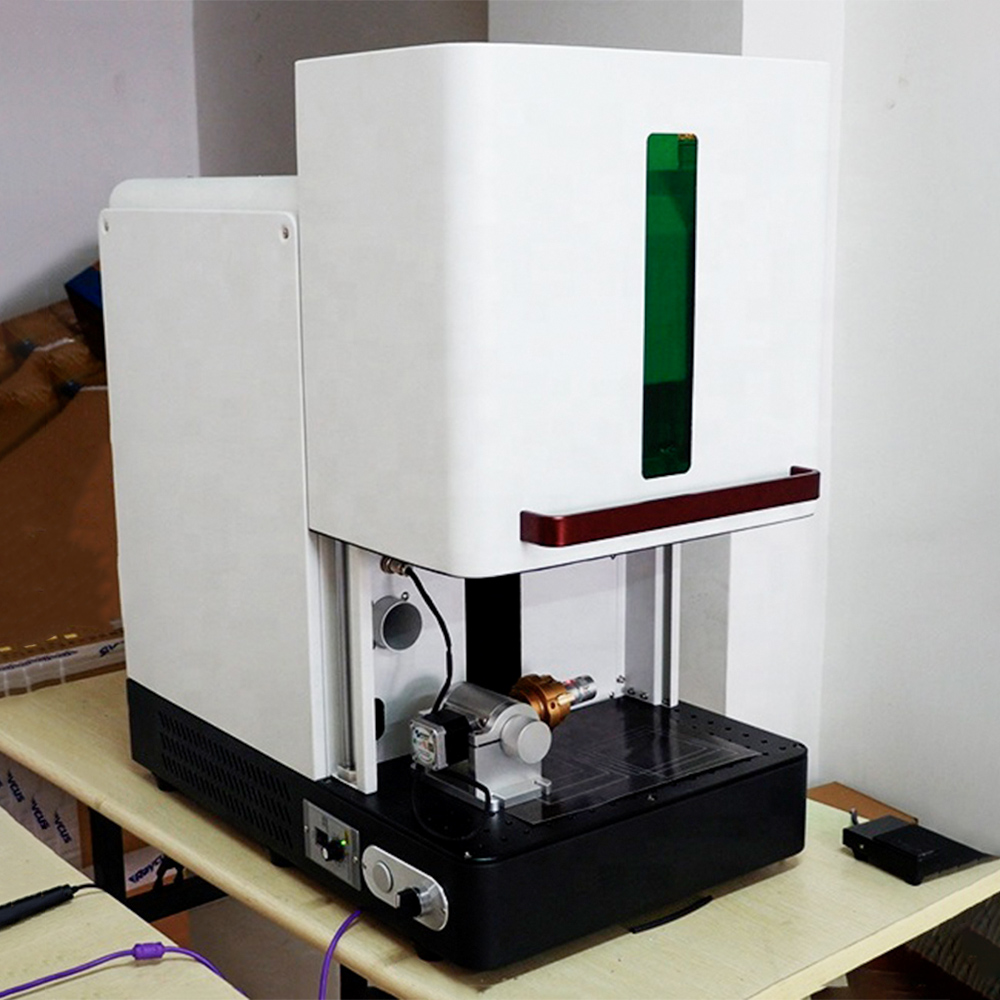

PROTECTIVE ENCLOSED DESIGN: The machine is equipped with a sturdy, fully enclosed box that houses all working components. This design is crucial for operator safety and filters laser light and containing any particles or vapors generated during the marking process, ensuring compliance with safety standards.
AUTOMATIC FOCAL LENGTH ADJUSTMENT: The system supports fully automatic adjustment of the focal length, simplifying setup and ensuring optimal marking quality across different workpiece heights and materials without manual intervention.
The machine is composed of several key components that work together to generate and control the laser beam for precise marking. Each component is designed to ensure stable operation, accurate beam positioning, and reliable performance in industrial marking applications.
Field Lens
Ruler
Rotary System
Control Board
We offer a wide variety of laser types and options to fulfill your exact needs depending on the materials you are processing.
Here is a breakdown of the available laser types and their ideal material applications:
| Fiber Laser | All kinds of metal: Carbon Steel, Stainless Steel, Brass, Copper, Aluminum, Gold, Silver, kinds of Alloy, etc. Some hard Plastic. |
| CO2 Laser | All kinds of non-metal: Wood, Plywood, Bamboo, MDF, Leather, Fabric, Textile, Paper, Plastic, Acrylic, etc. |
| UV Laser | Metal and nonmetal for high accuracy marking. |
| MOPA Laser | Mark Color on Stainless Steel. |
| Green Laser | Make 3D Marking on Crystal. |
Because industrial laser requirements vary significantly by application, we do not use a standard “add to cart” checkout. We utilize a consultative ordering process to ensure you receive the exact machine configuration required for your facility.
Submit Your Requirements: Start by filling out our inquiry form. Detail your specific application needs, including target materials, desired laser power, preferred laser source and any optional accessories.
Technical Consultation & Quoting: Our engineering sales team will review your submission and contact you directly. We will discuss your production environment, finalize the optimal machine configuration, and provide a competitive, customized price quote.
Custom Assembly & Quality Assurance: Upon order confirmation and finalized terms, our technicians assemble your handheld laser marker to your exact specifications. Every unit undergoes rigorous operational testing to ensure peak performance and reliability.
Secure Shipping: Once testing is complete, the machine is securely crated for industrial transport and shipped globally to your facility, ready for immediate integration into your workflow.
This system is built for professional industrial users, fabrication shops, and manufacturing facilities. It is the ideal tool for:
Heavy Equipment Manufacturers: Marking VINs, serial numbers, and spec plates directly onto large chassis.
Metal Fabrication Shops: Adding logos, part numbers, and tracking codes to oversized structural steel or custom metalwork.
Mold and Die Makers: Deep carving identification codes into heavy tooling without removing it from the rack.
Aerospace and Automotive: Marking large, assembled components where disassembly is not an option.
Yes. The machine can be customized to meet specific production requirements. Depending on the application, configurations such as laser power, working area, marking software features, and optional accessories can be adjusted. Customization may also include different enclosure designs, rotary devices for marking cylindrical objects, or integration with production lines.
When sending an inquiry, it is recommended to describe the materials you plan to mark, the marking size, and your production environment so the appropriate configuration can be suggested.
| Power | 20W, 30W, 50W, 80W, 100W |
|---|---|
| Working Area | from 110*110 mm to 300*300 mm |
| Laser Type | Fiber Laser, CO2 Laser, UV Laser, MOPA Laser, Green Laser |
| Laser Sourse | JPT |
| Engraving Speed | ≤7000mm/s |
| Working Voltage | 120V–220V |
