Industrial Fiber Laser Marking Machine | 20W-60W Systems
This industrial fiber laser marking machine, designed for high-speed continuous part identification, delivers accurate results across a wide range of manufacturing applications. Whether your business requires mass production of serial numbers, engraving of complex logos, or scannable 2D data matrix codes for strict traceability compliance, this machine delivers consistent and repeatable performance.
VARIABLE POWER CONFIGURATIONS: Available in 20W, 30W, 50W, and 60W variants, allowing engineers to specify the exact power level required for their specific material density and target cycle times.

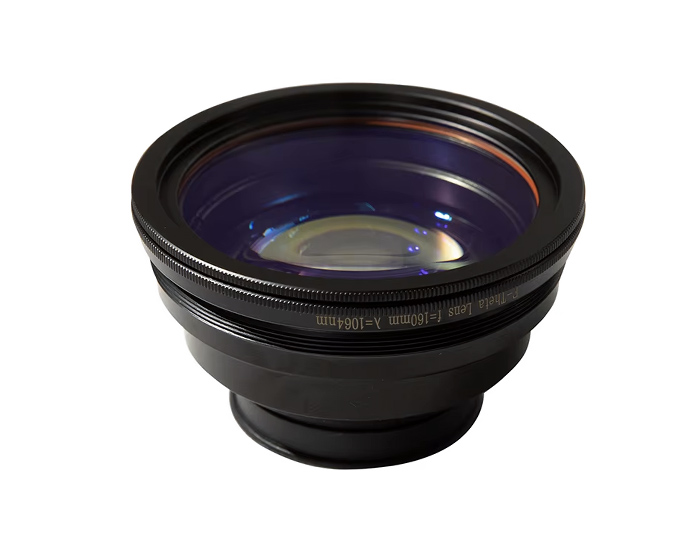

PRECISION F-THETA OPTICS: Equipped with a specialized flat-field lens that ensures the laser beam remains perfectly focused across the entire standard working area, preventing distortion at the edges of the marking field.
SOLID-STATE FIBER LASER SOURCE: Built around a highly stable fiber optic source, the machine delivers a consistent beam profile with an expected operational lifespan of up to 100,000 hours.
The machine is composed of several key components that work together to generate and control the laser beam for precise marking. Each component is designed to ensure stable operation, accurate beam positioning, and reliable performance in industrial marking applications.

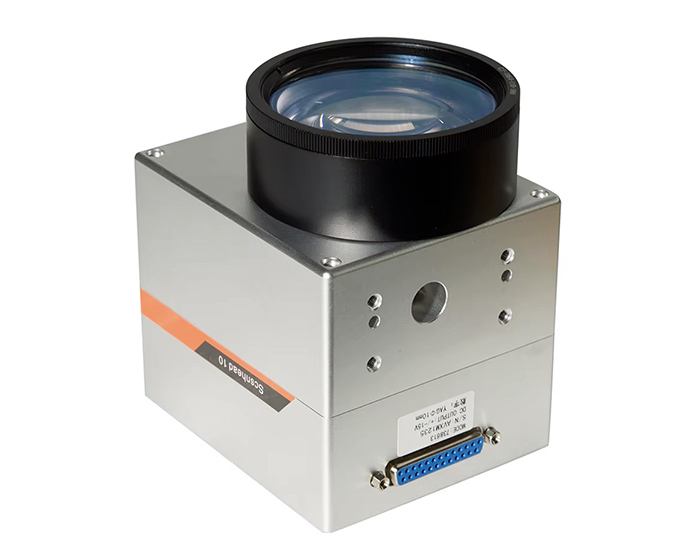

Scan Head
Laser Sourse
Working Table
Focal Lens
We offer a wide variety of laser types and options to fulfill your exact needs depending on the materials you are processing.
Here is a breakdown of the available laser types and their ideal material applications:
| Fiber Laser | All kinds of metal: Carbon Steel, Stainless Steel, Brass, Copper, Aluminum, Gold, Silver, kinds of Alloy, etc. Some hard Plastic. |
| CO2 Laser | All kinds of non-metal: Wood, Plywood, Bamboo, MDF, Leather, Fabric, Textile, Paper, Plastic, Acrylic, etc. |
| UV Laser | Metal and nonmetal for high accuracy marking. |
| MOPA Laser | Mark Color on Stainless Steel. |
| Green Laser | Make 3D Marking on Crystal. |
Color Marking
Because industrial laser requirements vary significantly by application, we do not use a standard “add to cart” checkout. We utilize a consultative ordering process to ensure you receive the exact machine configuration required for your facility.
Submit Your Requirements: Start by filling out our inquiry form. Detail your specific application needs, including target materials, desired laser power, preferred laser source and any optional accessories.
Technical Consultation & Quoting: Our engineering sales team will review your submission and contact you directly. We will discuss your production environment, finalize the optimal machine configuration, and provide a competitive, customized price quote.
Custom Assembly & Quality Assurance: Upon order confirmation and finalized terms, our technicians assemble your handheld laser marker to your exact specifications. Every unit undergoes rigorous operational testing to ensure peak performance and reliability.
Secure Shipping: Once testing is complete, the machine is securely crated for industrial transport and shipped globally to your facility, ready for immediate integration into your workflow.
This system is built for professional industrial users, fabrication shops, and manufacturing facilities. It is the ideal tool for:
Heavy Equipment Manufacturers: Marking VINs, serial numbers, and spec plates directly onto large chassis.
Metal Fabrication Shops: Adding logos, part numbers, and tracking codes to oversized structural steel or custom metalwork.
Mold and Die Makers: Deep carving identification codes into heavy tooling without removing it from the rack.
Aerospace and Automotive: Marking large, assembled components where disassembly is not an option.
Yes. The machine can be customized to meet specific production requirements. Depending on the application, configurations such as laser power, working area, marking software features, and optional accessories can be adjusted. Customization may also include different enclosure designs, rotary devices for marking cylindrical objects, or integration with production lines.
When sending an inquiry, it is recommended to describe the materials you plan to mark, the marking size, and your production environment so the appropriate configuration can be suggested.
| Power | 20W, 30W, 50W, 60W |
|---|---|
| Lifespan | up to 100,000 hours |
| Laser Sourse | JPT |
| Wavelength | 1064 nm |
| Laser Type | Fiber Laser, CO2 Laser, UV Laser, MOPA Laser, Green Laser |
| Engraving Speed | 10,000 mm/s |
| Operating Temperature | +15℃ ~ +35 ℃ |
| Working Voltage | 120V–220V |

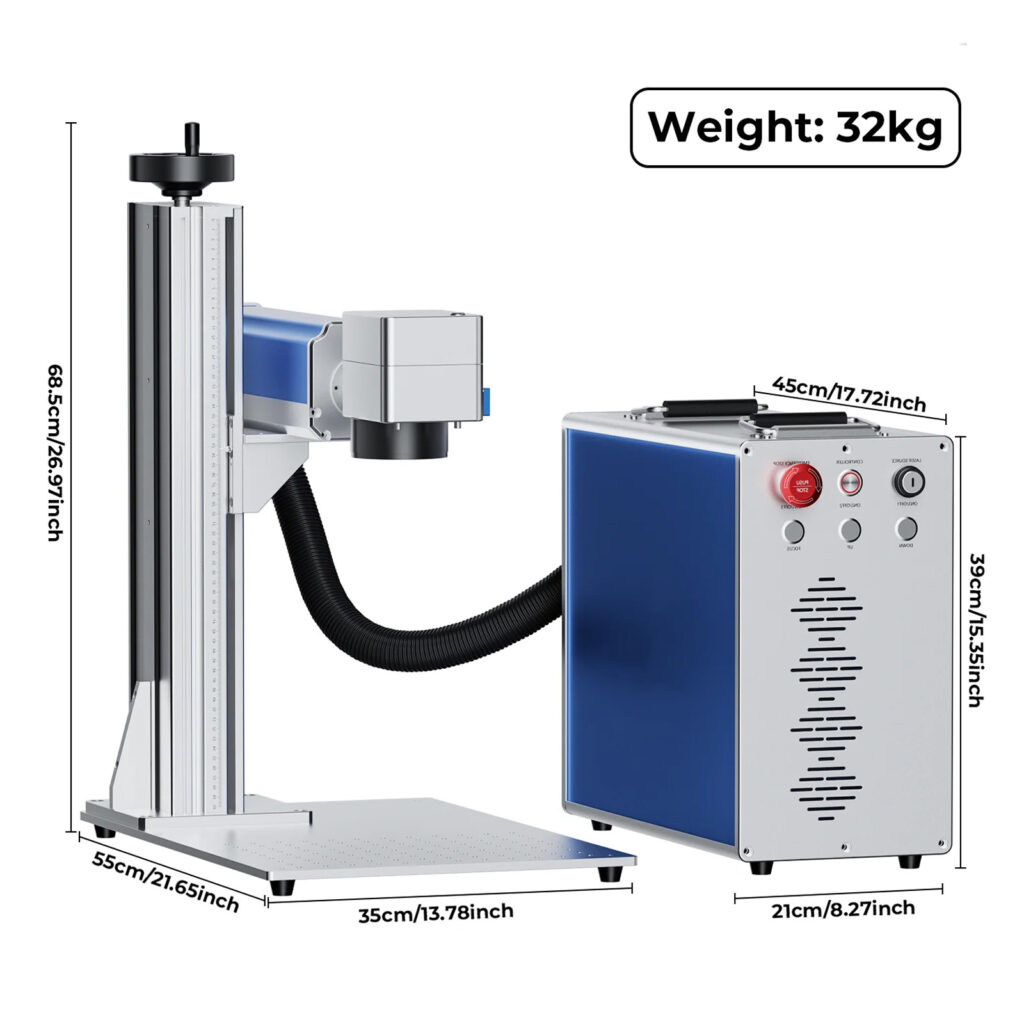

| Weight | 32Kg |
